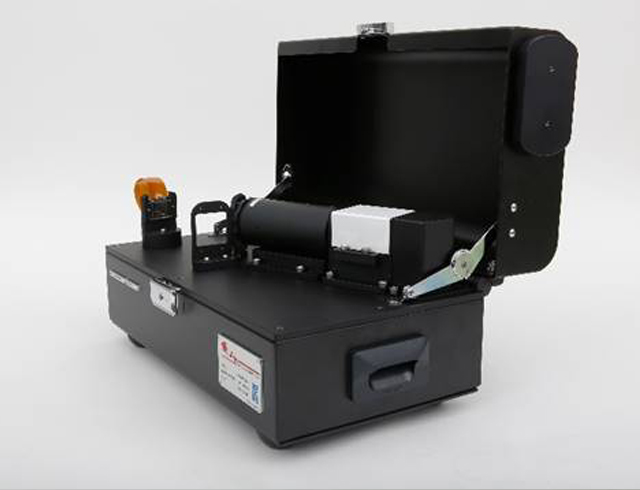

Holographic EV Kit
홀로그램 연구 개발용 키트로 당사 0.62” UHD (Phase Modulation) 패널 1개로 풀 컬러 홀로그램을 구현 가능한 세계 유일 제품입니다.
타사 제품 대비 프로젝션 기능과 공간광변조 능력이 우수하여, 3D 홀로그램, HUD, 홀로그램 프로젝터, 홀로그래픽 스크린 등 으로 활용 가능합니다.
- Use May LCoS IRIS-U62 Panel
-
Components : IRIS-U62 Panel, Driving board, Laser, Expander
Accessories : HDMI 2.0 cable, Power cable
Holographic EV Kit
| Display | May LCoS IRIS-U61 (3,840 × 2,160) |
|---|---|
| Active Area | 0.62″ |
| Pixel Pitch | 3.6㎛ |
| Frame Rate | 120Hz (360Hz @Each color) |
| Optical Power | 120, 65, 65mW (R,G,B) |
| Laser Safety | Class 3B |
| Optical Power Stability | ≤ 5% |
| TTL Modulation Range | ≤ 500KHz |
| Beam Alignment | ≤ 1.5mrad |
| Interface | HDMI |
| Power | AC 220V |
